Battery kit for APC Smart UPS X 2200/3000 replaces APCRBC143

Art.-No.: RBC143-BD1

Warranty extension - 3 years of secure power supply


553.08 EUR
498.61 EUR
Price excl. VAT:
419.00 EUR
plus shipping

VAT FREE PURCHASE
This VAT is calculated based on the German VAT (19%). EU customers outside of Germany may qualify for 0% VAT delivery if a valid VAT registration number can be provided.

Shipping costs
The shipping expenses are as follows:

Germany only 6,50 € (incl. VAT: 7,54 €)
(Standard shipping, regardless of cost or quantity ordered)

For all other countries look here

On stock - Ready for dispatch

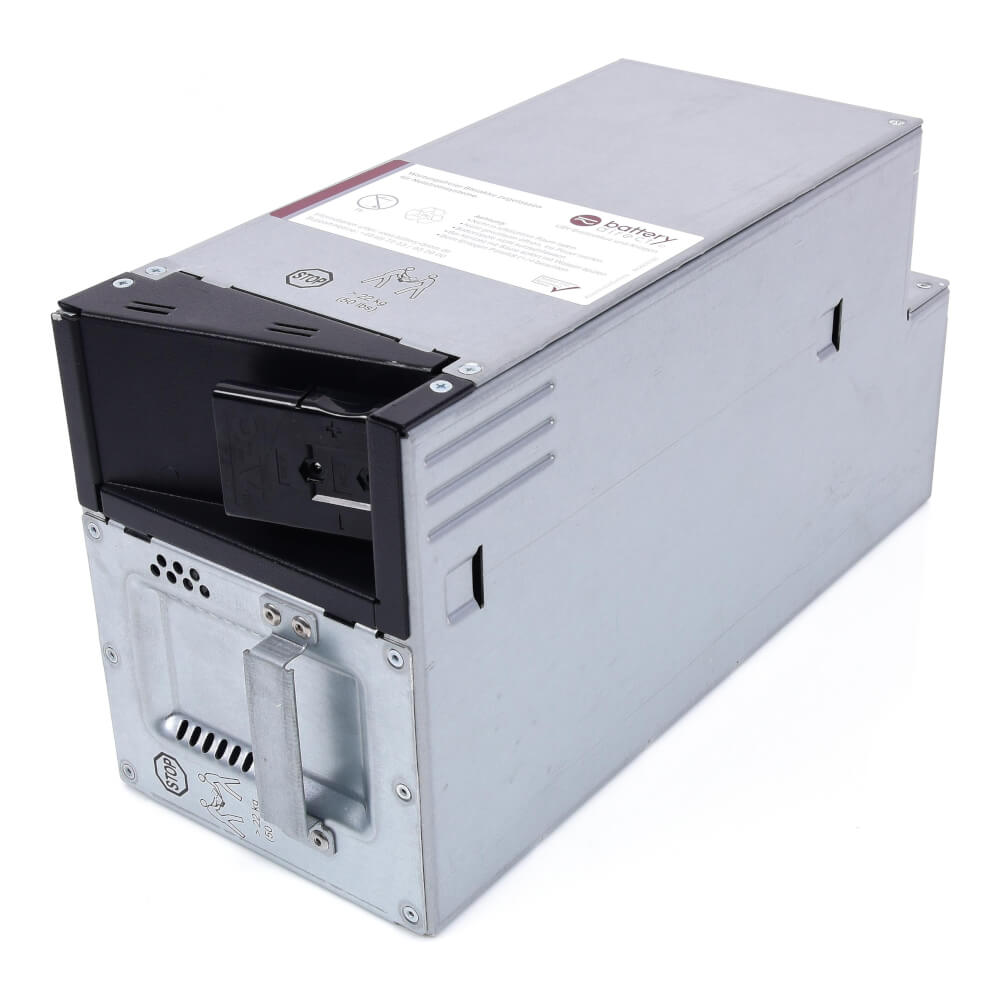

Battery kit for APC Smart UPS X 2200/3000 replaces APCRBC143

For APC models:SMX120BP (2 x RBC143-BD1), SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HVNC
Manufacturer:battery-direct©
Manufacturer number:RBC143-BD1
Product group:APC replacement battery
Product Type:Ready-to-install RBC143-BD1 battery kit conforming to APC-specifications
Battery Type:Maintenance-free, leak proof, Sealed Lead Acid battery. Best high-current ability for UPS units
Guideline:APC UPS 2002/95/EG, RoHS compliant
Warranty:2 years (3 years optional)
Video:That simple works an installation with a fully assembled Plug 'n' Play Kit by battery-direct. Installation video (1:24 min)
Lifespan:Up to 8 years at 25°C
Length:481 mm
Width:279 mm
Height:225 mm
Weight:22,2 kg
Included in delivery:RBC143-BD1 Battery kit, installation manual
Info:For some specific UPS-models two of these battery modules are been required
Documents:usv-rbc Datasheet

Optional extended warranty

rbc garantieEnsure yourselves 3 years power despite power breakdown with our optional extension of warranty. The higher-than-average long warranty of 2 years will completely be extended by 1 year. Therefor please choose during your order the corresponding option

Best quality to Great-conditions

Revitalize the heart of your APC UPS

Batteries are the heart of a UPS system. They ensure the standby state of your UPS system. Because of our 100 % quality control, stress tests (load tests) and a final equalization charge, you will always have power even during a blackout.

RBC143-BD1 Replacement Battery for the following APC UPS models


APC Smart UPS X 2200 battery, 4HU, fits the following models:
  • SMX2200HV
  • SMX2200HVNC
APC Smart UPS X 3000 battery, 4HU, fits the following models:
  • SMX3000HV
  • SMX3000HVNC
  • SMX3000HVT
APC Smart-UPS X Battery Pack fits the following models:
  • SMX120BP (For this UPS type you need 2 of these batteries)

Trust in our 10 years of experience

Batterie Querschnitt
Applied battery by battery-direct beats manufacture-requirements.
  • High power density
  • Stable construction
  • High percentage of lead
  • Independent operating positions
  • Fully maintenance-free
Maintenance information:
  • Low ambient temperature is important for a longer life span.
  • Quick installation of battery to avoid deep discharge.
  • Replace battery as set, never single ones.


Recommended accessories:

AP9640 APC UPS Network Management Card 3

Art.-No.: AP9640
  • Connection UPS to network
  • Real-time observation and regulation of UPS via web browser
  • Shut down of server

APC Smart UPS X 2200 - SMX2200HV

Art.-No.: SMX2200HV
  • Product group: APC Smart UPS
  • Series: APC UPS
  • Type: Rack/Tower
  • Max Power: 1980 W
  • Max apparent power: 2200 VA
  • Technology: Line-Interactive
  • Network compatible: Possible
  • Extend runtime: Possible
  • Interface Ports: SmartSlot, USB, Serial

APC Smart UPS X 3000 - SMX3000HV

Art.-No.: SMX3000HV
  • Product group: APC Smart UPS
  • Series: APC UPS
  • Type: Rack/Tower
  • Max Power: 2700 W
  • Max apparent power: 3000 VA
  • Technology: Line-Interactive
  • Network compatible: Possible
  • Extend runtime: Possible
  • Interface Ports: SmartSlot, USB, Serial
