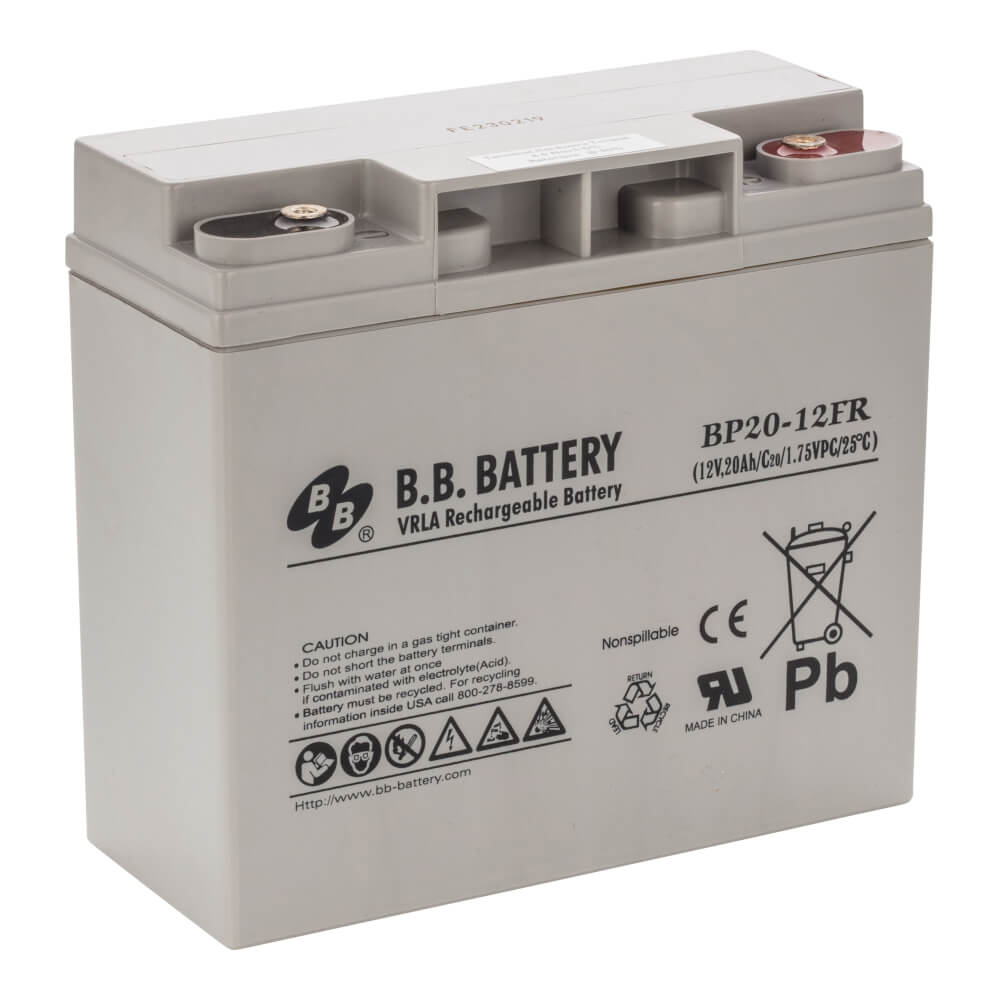

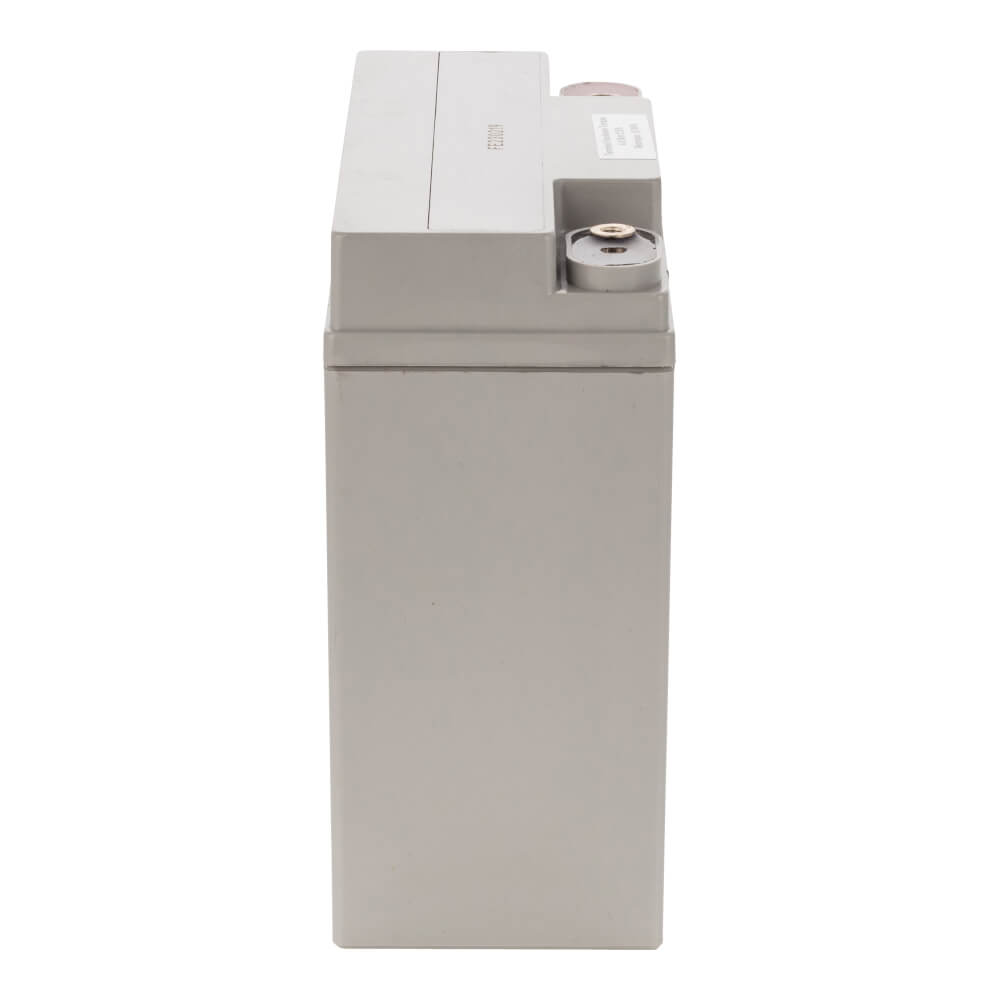

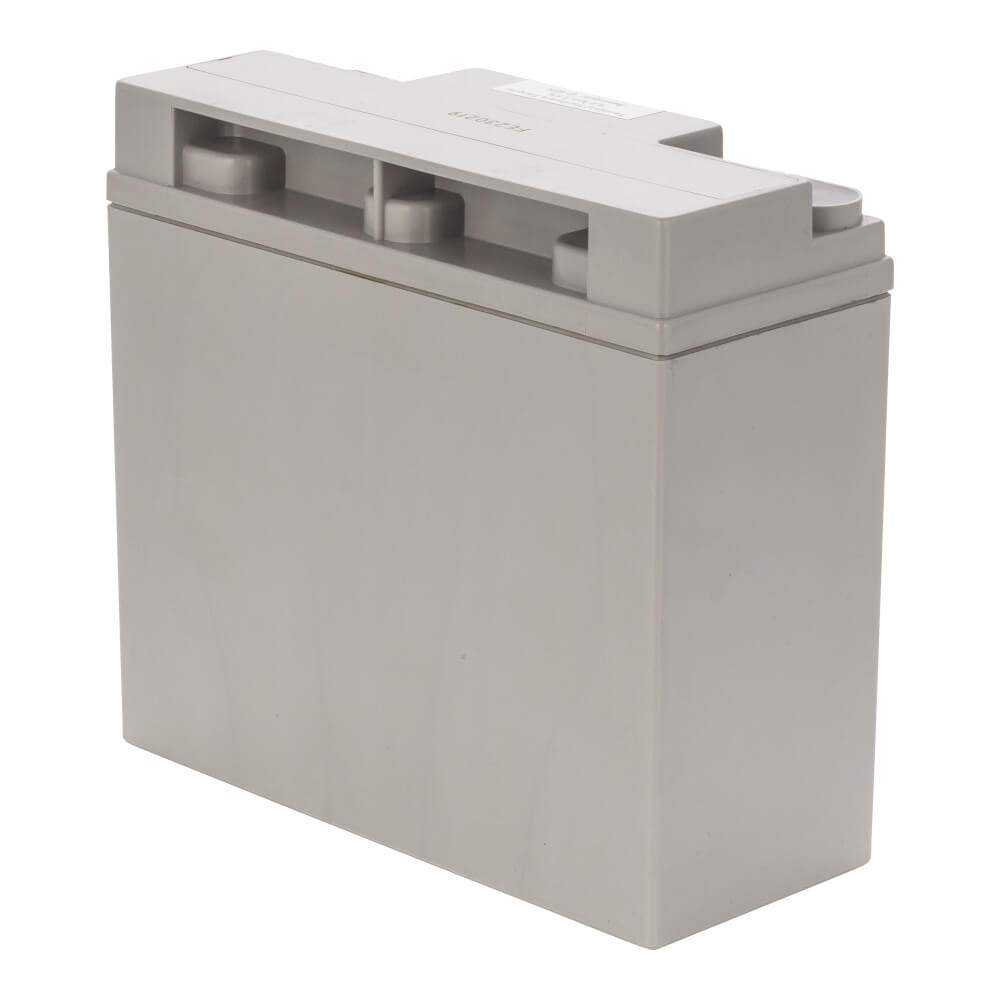

12V 20Ah Battery, Sealed Lead Acid battery (AGM), B.B. Battery BP20-12FR, flame redardant, VdS, replaces e.g. Panasonic LC-P1220AP

Art.-No.: BP20-12FR
71.62 EUR 67.15 EUR
Price excl. VAT: 56.43 EUR plus shipping

VAT FREE PURCHASE
This VAT is calculated based on the German VAT (19%). EU customers outside of Germany may qualify for 0% VAT delivery if a valid VAT registration number can be provided.

Shipping costs
The shipping expenses are as follows:

Germany only 6,50 € (incl. VAT: 7,54 €)
(Standard shipping, regardless of cost or quantity ordered)

For all other countries look here

On stock - Ready for dispatch

bb battery logo

12V 20Ah Battery, Sealed Lead Acid battery (AGM), B.B. Battery BP20-12FR, flame redardant, VdS, replaces e.g. Panasonic LC-P1220AP

Manufacturer:B.B. Battery©
Manufacturer number:BP20-12FR
Product group:Lead-acid batteries (AGM)
Battery Type:Maintenance-free, leak proof, Sealed Lead Acid battery
Characteristics:BP-Serie: Allround PLUS
Applications:BP-Serie with option "Flame retardant" (difficult flammable):
UPS systems (emergency power, radar, radio, security lighting, telecommunications, BSV systems, emergency lighting)
DC UPS (wind engines, pitch adjustment, control/regulation technology, communication systems)
Rechargeable:Yes
Max Charge Current:6 A
Nominal voltage:12 V
Capacity:20 AH
Terminal:B1 (Fitting M5 bolt and nut)
Material:Flame retardant ABS case according to norm UL 94-V0
Operating Environment:- 30°C to + 50°C, recommend + 10°C to + 30°C
Warranty:1 year
Lifespan (calendar):LONG LIFE, 10 to 12 years according to EUROBAT (standby-operation at 20°C)
Lifespan (cycle):Up to 500 cycles (load/unloading operations at 50% discharging depth)
Length:181 mm
Width:76 mm
Height:166 mm
Weight:6,35 kg
Info:Replaces Panasonic LC-P1220AP (Suitable e.g. for Phoenix Contact, Beckhoff UPS Systems)
Documents:usv-rbc Datasheet

We know the recipe for high accumulator performance

B.B. Battery®: Lead-acid batteries of the highest quality


bleiakku querschnitt1.) Pure Lead
With 99,9% above-average high purity level and corrosion resistant micro crystal structure
2.) Promotion Performance Fleece
Glass-mat separator with maximum absorption on level
3.) Balanced Electrolyte
Specialized pH-value for optimised ion mobility
4.) Asymmetrical lattice structure
Special geometry of lead components for high capacity and efficiency



The correct ingredients produce outstanding characteristics:

  • High cycle
    Above average, charging and discharging cycles
  • High durability
    Top-Quality materials and careful processing
  • Low Self-discharge
    Ideal material-coordination for a maximum performance
  • High Capacity and Efficiency
    High Capacity and Efficiency Low internal resistance for high discharge current
  • Charged Batteries
    Accumulators in general are fully-charged on delivery

Which serie for which applications?


Standby
Store electricity reliably over a long period of time.
Cycle
A cycle is a discharge and a charge.
Long Life
The (chronological) life indicates how long a battery can be used under optimal conditions.
High Rate
The ability to provide energy in a short time.

Brand: B.B. Battery©
 Stand-byCycleLong LifeHigh Rate
BC-SerieAllround
BP-SerieAllround PLUS
EP-SerieCycle
EB-SerieCycle, Mobility
HR-SerieHigh Rate
HRC-SerieHigh Rate
HRL-SerieHigh Rate, Long Life, Standby
BPL-SerieLong Life, Standby
MPL-SerieHigh Rate, Long Life, Standby
MSB-Serie Long Life, Cycle, Standby


Brand: battery-direct©
 Stand-byCycleLong LifeHigh Rate
CYC-SeriesCycle
SBY-SeriesStand-By
SBYH-SeriesStand-By, High Rate
SBYH-SeriesStand-By, High Ratey, Long Life

Replaces Panasonic LC-P1220AP (Suitable e.g. for Phoenix Contact, Beckhoff UPS Systems)


This battery type is due to its specific case, which is difficult inflammable, produced for DC UPS. As for example Phoenix Contact.

Quantity discount

  • from 2 pieces 2% discount = 55.30 EUR
  • from 8 pieces 3% discount = 54.74 EUR
  • from 22 pieces 4% discount = 54.17 EUR

For a customised quotation please feel free to contact us.


reseller  For special conditions please registrate yourselves here.


Recommended accessories:

12V 20Ah battery, cyclic Sealed Lead Acid battery (AGM), battery-direct CYC-AGM-12-20, 181x76x166 mm (LxWxH), Terminal B1 (Fitting M5 bolt and nut)

Art.-No.: CYC-AGM-12-20
  • Nominal voltage: 12 V
  • Capacity: 20 AH
  • Weight: 6,35 kg
  • Characteristics: CYC-Serie: Cycle
  • Lifespan (cycle): Up to 500 cycles (load/unloading operations at 50% discharging depth)
  • Lifespan (calendar): GENERAL PURPOSE, 6 to 9 years according to EUROBAT (standby-operation at 20°C)

12V 20Ah Battery, Sealed Lead Acid battery (AGM), battery-direct SBYH-AGM-12-20, 181x77x167 mm (LxWxH), Terminal B1 (Fitting M5 bolt and nut)

Art.-No.: SBYH-AGM-12-20
  • Nominal voltage: 12 V
  • Capacity: 20 AH
  • Weight: 5,51 kg
  • Characteristics: SBYH-Serie: Standby, High Rate
  • Lifespan (cycle): Up to 450 cycles (load/unloading operations at 50% discharging depth)
  • Lifespan (calendar): GENERAL PURPOSE, 6 to 9 years according to EUROBAT (standby-operation at 20°C)
