Battery kit for APC Smart UPS 2200/3000/5000 replaces APC RBC12

Art.-No.: RBC12-BD1

Warranty extension - 3 years of secure power supply


220.00 EUR
Price incl. VAT: plus shipping

VAT FREE PURCHASE
This VAT is calculated based on the German VAT (16%). EU customers outside of Germany may qualify for 0% VAT delivery if a valid VAT registration number can be provided.

Shipping costs
The shipping expenses are as follows:

Germany only 6,50 € (incl. VAT: 7,54 €)
(Standard shipping, regardless of cost or quantity ordered)

For all other countries look here

Ready for dispatch

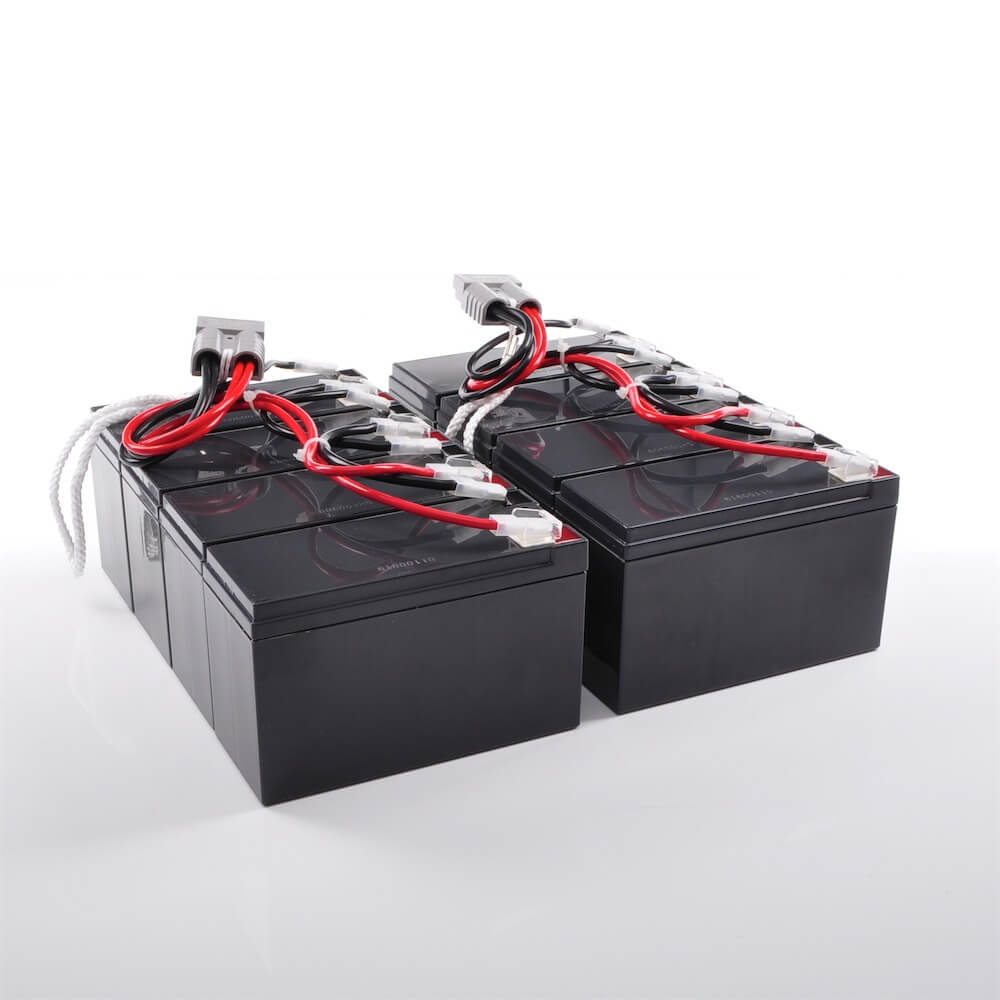

Battery kit for APC Smart UPS 2200/3000/5000 replaces APC RBC12

For APC models:SU3000RMI3U, SU3000R3IBX120, SU3000R3IBX135, SU3000R3IBX180, SU2200RMI3U, DL2200RMI3U, SU2200R3IBX120, DL3000RMI3U, NS3000RMI3U, SU5000I (2 x RBC12-BD1), DL5000RMI5U (2 x RBC12-BD1), SU5000RMI5U (2 x RBC12-BD1), SU5000R5IBX120 (2 x RBC12-BD1), SU5000RMXLI5U (2 x RBC12-BD1), SU5000R5IBX135 (2 x RBC12-BD1)
Manufacturer:battery-direct©
Manufacturer number:RBC12-BD1
Product group:APC replacement battery
Product Type:Ready-to-install RBC12-BD1 battery kit conforming to APC-specifications
Battery Type:Maintenance-free, leak proof, Sealed Lead Acid battery. Best high-current ability for UPS units
Guideline:APC UPS 2002/95/EG, RoHS compliant
Warranty:2 years (3 years optional)
Video:That simple works an installation with a fully assembled Plug 'n' Play Kit by battery-direct. Installation video (1:24 min)
Lifespan:Up to 8 years at 25°C
Length:260 mm
Width:151 mm
Height:100 mm
Weight:17,8 kg
Included in delivery:RBC12-BD1 Battery kit, installation manual
Info:For some specific UPS-models two of these battery modules are been required
Documents:usv-rbc Datasheet

Optional extended warranty

Ensure yourselves 3 years power despite power breakdown with our optional extension of warranty. The higher-than-average long warranty of 2 years will completely be extended by 1 year. Therefor please choose during your order the corresponding option

Best quality to Great-conditions

RBC-Video

Revitalize the heart of your APC UPS

Batteries are the heart of a UPS system. They ensure the standby state of your UPS system. Because of our 100 % quality control, stress tests (load tests) and a final equalization charge, you will always have power even during a blackout.

RBC12-BD1 Replacement Battery for the following APC UPS models


APC Smart UPS 2200 battery fits the following models:
  • SU2200RMI3U
  • DL2200RMI3U
  • SU2200R3IBX120
APC Smart UPS 3000 battery fits the following models:
  • SU3000RMI3U
  • SU3000R3IBX120
  • SU3000R3IBX135
  • SU3000R3IBX180
  • DL3000RMI3U
  • NS3000RMI3U
APC Smart UPS 5000 battery fits the following models:
  • SU5000I (For this UPS type you need 2 of these batteries)
  • DL5000RMI5U (For this UPS type you need 2 of these batteries)
  • SU5000RMI5U (For this UPS type you need 2 of these batteries)
  • SU5000R5IBX120 (For this UPS type you need 2 of these batteries)
  • SU5000RMXLI5U (For this UPS type you need 2 of these batteries)
  • SU5000R5IBX135 (For this UPS type you need 2 of these batteries)

Trust in our 10 years of experience

Batterie Querschnitt
Applied battery by battery-direct beats manufacture-requirements.
  • High power density
  • Stable construction
  • High percentage of lead
  • Independent operating positions
  • Fully maintenance-free
Maintenance information:
  • Low ambient temperature is important for a longer life span.
  • Quick installation of battery to avoid deep discharge.
  • Replace battery as set, never single ones.


Recommended accessories:

12V 40Ah Battery, Sealed Lead Acid battery (AGM), battery-direct SBYHL-AGM-12-40, 195x129x168 mm (LxWxH), Terminal I2 (Insert M6)

Art.-No.: SBYHL-AGM-12-40
  • Nominal voltage: 12 V
  • Capacity: 40 AH
  • Weight: 12,10 kg
  • Characteristics: SBYHL-Serie: Standby, High Ratey, Long Life
  • Lifespan (cycle): Up to 450 cycles (load/unloading operations at 50% discharging depth)
  • Lifespan (calendar): LONG LIFE, 10 to 12 years according to EUROBAT (standby-operation at 20°C)

AP9630 APC UPS Network Management Card 2

Art.-No.: AP9630
  • Connection UPS to network
  • Real-time observation and regulation of UPS via web browser
  • Shut down of server
