Battery kit for APC Smart UPS X 2000/2200/3000 replaces APCRBC117

Art.-No.: RBC117-BD1

Warranty extension - 3 years of secure power supply


321.11 EUR
Price incl. VAT: plus shipping

VAT FREE PURCHASE
This VAT is calculated based on the German VAT (16%). EU customers outside of Germany may qualify for 0% VAT delivery if a valid VAT registration number can be provided.

Shipping costs
The shipping expenses are as follows:

Germany only 6,50 € (incl. VAT: 7,54 €)
(Standard shipping, regardless of cost or quantity ordered)

For all other countries look here

Ready for dispatch

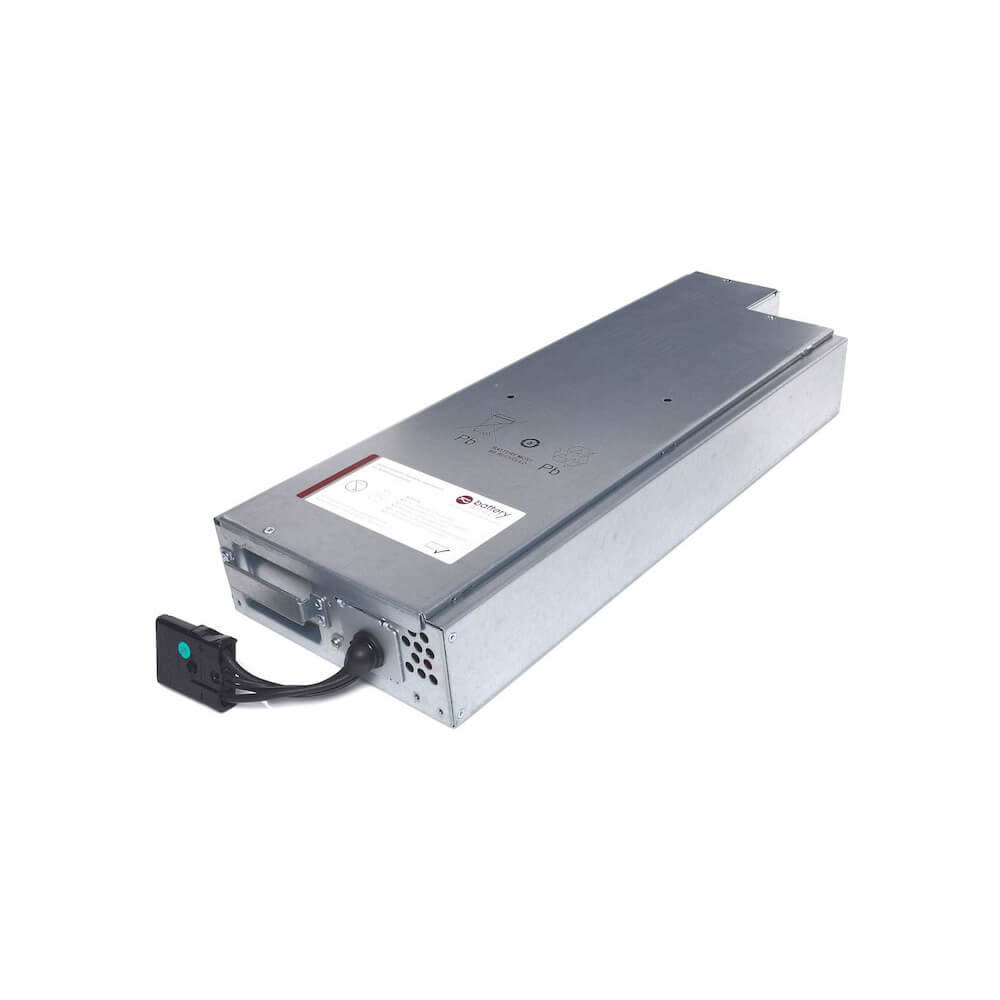

Battery kit for APC Smart UPS X 2000/2200/3000 replaces APCRBC117

For APC models:SMX2200RMHV2U, SMX2200R2HVNC, SMX3000RMHV2U, SMX3000RMHV2UNC, FJX3000RMHV2UNC
Manufacturer:battery-direct©
Manufacturer number:RBC117-BD1
Product group:APC replacement battery
Product Type:Ready-to-install RBC117-BD1 battery kit conforming to APC-specifications
Battery Type:Maintenance-free, leak proof, Sealed Lead Acid battery. Best high-current ability for UPS units
Guideline:APC UPS 2002/95/EG, RoHS compliant
Warranty:2 years (3 years optional)
Video:That simple works an installation with a fully assembled Plug 'n' Play Kit by battery-direct. Installation video (1:24 min)
Lifespan:Up to 8 years at 25°C
Length:584 mm
Width:203 mm
Height:76 mm
Weight:22,2 kg
Included in delivery:RBC117-BD1 Battery kit, installation manual
Info:According to the manufacturer the replacement of the batteries by the user is not possible.
Documents:usv-rbc Datasheet

Optional extended warranty

Ensure yourselves 3 years power despite power breakdown with our optional extension of warranty. The higher-than-average long warranty of 2 years will completely be extended by 1 year. Therefor please choose during your order the corresponding option

Best quality to Great-conditions

RBC-Video

Revitalize the heart of your APC UPS

Batteries are the heart of a UPS system. They ensure the standby state of your UPS system. Because of our 100 % quality control, stress tests (load tests) and a final equalization charge, you will always have power even during a blackout.

RBC117-BD1 Replacement Battery for the following APC UPS models


Battery for APC Smart UPS X 2200, 2HU, fits the following models:
  • SMX2200RMHV2U
  • SMX2200R2HVNC
Battery for APC Smart UPS X 3000, 2HE, fits the following models:
  • SMX3000RMHV2U
  • SMX3000RMHV2UNC
  • FJX3000RMHV2UNC

Trust in our 10 years of experience

Batterie Querschnitt
Applied battery by battery-direct beats manufacture-requirements.
  • High power density
  • Stable construction
  • High percentage of lead
  • Independent operating positions
  • Fully maintenance-free
Maintenance information:
  • Low ambient temperature is important for a longer life span.
  • Quick installation of battery to avoid deep discharge.
  • Replace battery as set, never single ones.
